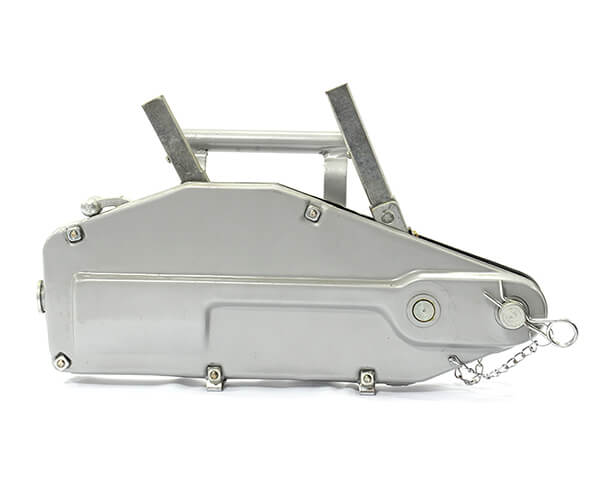

JTWW-A Wire Rope Winch(Aluminum Housing)
Adjustable handle for easy operation
Backward lever&Forward lever placed in tandem providing a slim design and assuring power transfer along the center.
Spare shear pins
Two spare shear pins located in the carrying handle.
Built-in shearing pin
prevent overload.It functions at approx.50% overload and the pins can be replaced without removing the load.
Anchor bolt
offers numerous and versatile connection possibilities with load hooks，sling ropes and sling chains.
Stamped serial number for easy identification
High strength cast aluminum alloy body
Light weigh，simple to operate.Smooth contour design with large flat bottom surface for increased stability in horizontal as well as vertical working position.
Galv.steel wire rope mounted on a reel
every ropes is operationally tested to 150% of the rated capacity and is issued with an individual test certificate
Rope clamp system
easily disengaged with a lever allowing smooth installation of the wire rope.
| ZNL Series Wire Rope Winch | |||||
| Model | NHSS0.8 | NHSS1.0 | NHSS1.6 | NHSS3.2 | |
| Rated capacity | tons | 0.8 | 1.0 | 1.6 | 3.2 |
| Pulling capacity | tons | 1.2 | 1.5 | 2.4 | 4.8 |
| Rated forward travel | mm | ≥52 | ≥52 | ≥55 | ≥28 |
| Effcient length of forward handle | mm | 825 | 825 | 1200 | 1200 |
| Drive step | 1 | 1 | 1 | 2 | |
| Rope diameter | mm | 8 | 8 | 11 | 16 |
| Standard length of rope | m | 20 | 20 | 20 | 20 |
| Net weight | kg | 16 | 16 | 24 | 48 |
| Rated forward hand power | N | ≤284 | ≤353 | ≤412 | ≤441 |
| Max.Overall size | mm | 428×64×235 | 428×64×235 | 545×97×286 | 660×116×350 |
