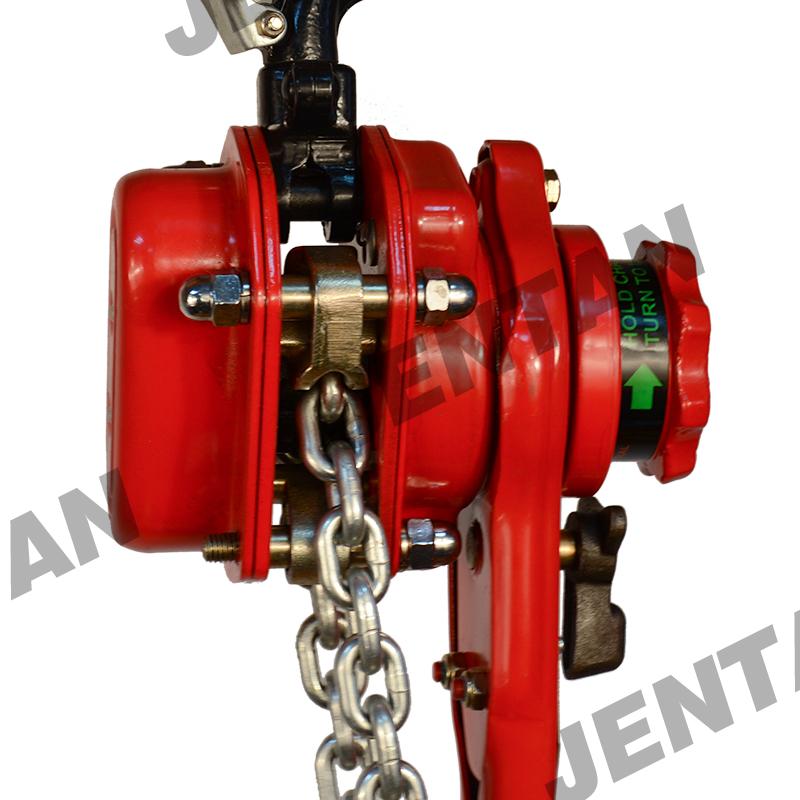

● All-steel construction featuring, rugged gear case and hand wheel, exceptional durability.
● Reinlorce double pawl brake system and lager dia. pawl springs ensure reliable brake.
● Unique curling design-This leature enables the hand chain to successlully feed directly into the wheel sprocket from many directions and angles.
● GBO heat treated alloy load chain.

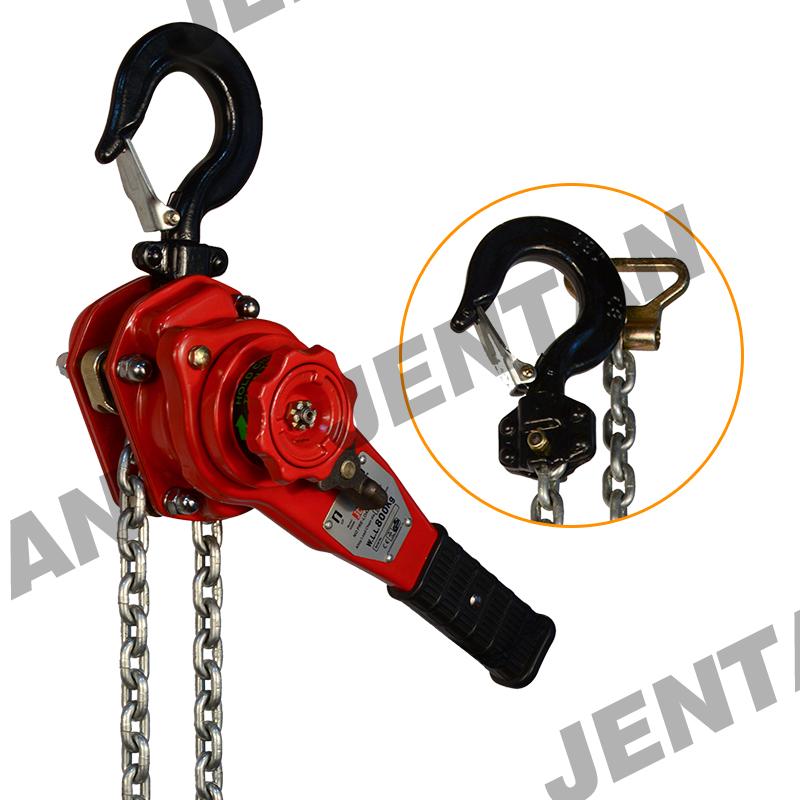

● Forged alloy Steel Hooks-Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety.
● Sealed roller bearings-Greatly improving performance and serve life of the product.
● Certification-Load tested to 150% of capacity with certificate.
VG Specifications Sheet | ||||||||||||||
Model | W.L.L(t) | LIFT(m) | Proof Load(t) | Lever Force kg(n)(ibs) | Load Chain | Dimensions(mm) | N.W.(kg) | Additional Weight Per Lift(kg) | ||||||
Falls | Size | H | A | B | C | D | L | kg | ||||||
VG-0.8 | 0.8 | 1.5 | 1.2 | 22(215)(48) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
VG1 | 1 | 1.5 | 1.5 | 30(294)(66) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
VG1.6 | 1.6 | 1.5 | 2.4 | 31(304)(68) | 1 | 7.1x19.9 | 350 | 168 | 104 | 126 | 32 | 265 | 8.5 | 1.1 |
VG3.2 | 3.2 | 1.5 | 4.8 | 38(372)(84) | 1 | 10x28 | 395 | 201 | 118 | 159 | 35 | 415 | 14.2 | 2.3 |
VG6.3 | 6.3 | 1.5 | 9.5 | 39(382)(86) | 2 | 10x28 | 540 | 201 | 118 | 218 | 44 | 415 | 26 | 4.6 |
VG9 | 9 | 1.5 | 13.5 | 40(392)(88) | 3 | 10x28 | 680 | 201 | 118 | 298 | 60 | 415 | 40 | 6.9 |
