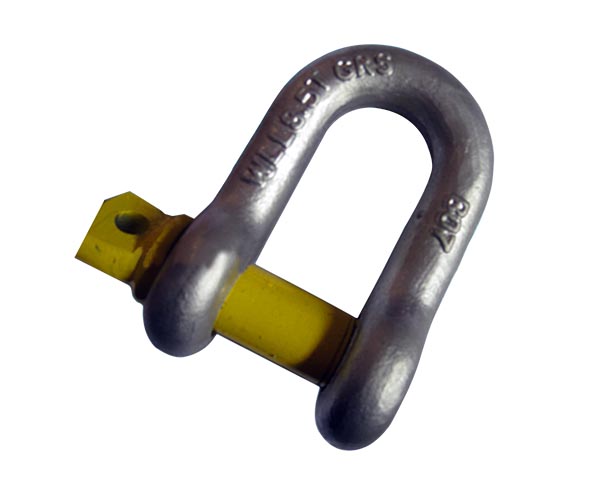

JTR-SE16 Australian Type Riigging Hardware Grade S Dee Shackle
| JTR-SE16 | |||
| Australian Type Rigging Hardware Grade S Dee Shackle | |||
| MATERIAL: | Body was carbon steel,Pin was alloy steel | ||
| CONSTRUCTION: | Quenched and Tempered | ||
| STANDARD: | AS 2741-2002 | ||
| GRADE: | S(6) | ||
| Product Code | working load limit | diameter bow(mm) | width inside(mm) | diameter pin(mm) |
| JTR-SE1601 | WLL0.33T | 5 | 10 | 6 |
| JTR-SE1602 | WLL0.5T | 6 | 12 | 8 |
| JTR-SE1603 | WLL0.75T | 8 | 13 | 10 |
| JTR-SE1604 | WLL1T | 10 | 17 | 11 |
| JTR-SE1605 | WLL1.5T | 11 | 18 | 13 |
| JTR-SE1606 | WLL2T | 13 | 21 | 16 |
| JTR-SE1607 | WLL3.25T | 16 | 27 | 19 |
| JTR-SE1608 | WLL4.75T | 19 | 32 | 22 |
| JTR-SE1609 | WLL6.5T | 22 | 37 | 25 |
| JTR-SE1610 | WLL8.5T | 25 | 43 | 29 |
| JTR-SE1611 | WLL9.5T | 29 | 46 | 32 |
| JTR-SE1612 | WLL12T | 32 | 52 | 35 |
| JTR-SE1613 | WLL13.5T | 35 | 57 | 38 |
| JTR-SE1614 | WLL17T | 38 | 60 | 41 |
| JTR-SE1615 | WLL25T | 44 | 73 | 51 |
| JTR-SE1616 | WLL35T | 51 | 83 | 57 |
| JTR-SE1617 | WLL55T | 63 | 105 | 68 |
| JTR-SE1618 | WLL85T | 76 | 127 | 83 |
