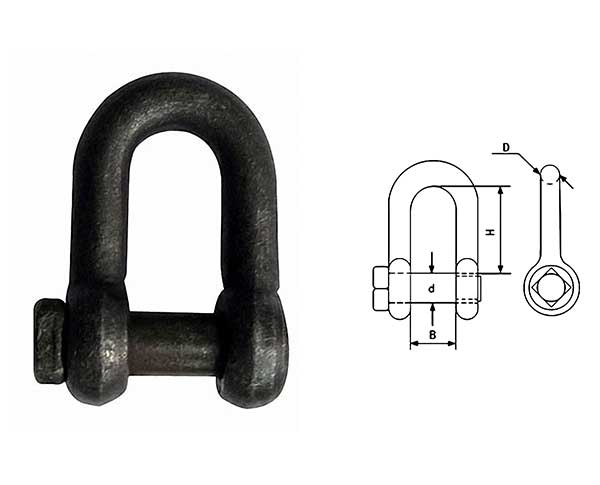

JTR-SE15 U.S.Trawing Shackle Wiyh Square Head Screw Pin(G2131)
| JTR-SE15 | |||||||||
| U.S. Trawing Shackle With Square Head Screw Pin(G2131) | |||||||||
| Product Code | Nominal size | Working Load Limit | Weight Each | Dimensions(mm) | |||||
| (in.) | (t) | (kg) | H | B | Diameter | Tolerance Plus／Minus | |||
| Pin | Outside of eye | Length | Width | ||||||
| JTR01-SE1501 | 1/4” | 1/2” | 0.055 | 7/8” | 15/32 | 5/16” | 5/8” | 1/16” | 1/32 |
| JTR01-SE1502 | 5/16” | 3/4” | 0.064 | 1-1/32 | 1/2” | 3/8” | 3/4” | 1/16” | 1/32 |
| JTR01-SE1503 | 3/8” | 1 | 0.118 | 1-1/4 | 11/16” | 7/1 6” | 29/32 | 1/8” | 1/l6” |
| JTR01-SE1504 | 7/l6” | 1 1/2 | 0.136 | 1-13/32 | 23/32 | 1/2” | 1-1/16 | 1/8” | 1/l6” |
| JTR01-SE1505 | 1/2” | 2 | 0.223 | 1-5/8 | 1 3/1 6 | 5/8” | 1-3/16 | 1/8” | 1/l6” |
| JTR01-SE1506 | 5/8” | 3 1/4 | 0.5 | 2 | 1 1/16 | 3/4” | 1-9/16 | 1/8” | 1/l6” |
| JTR01-SE1507 | 3/4” | 4 3/4 | 1 | 2-3/8 | 1-1/4 | 7/8” | 1—7/8 | 1/8” | 1/l6” |
| JTR01-SE1508 | 7/8” | 6 1/2 | 1.491 | 2-13/16 | 1 7/16 | 1 | 2-1/8 | 1/8” | 1/l6” |
