JTR-SE14 U.S.Bolt Type Safety Chain Shankles

JTR-SE14

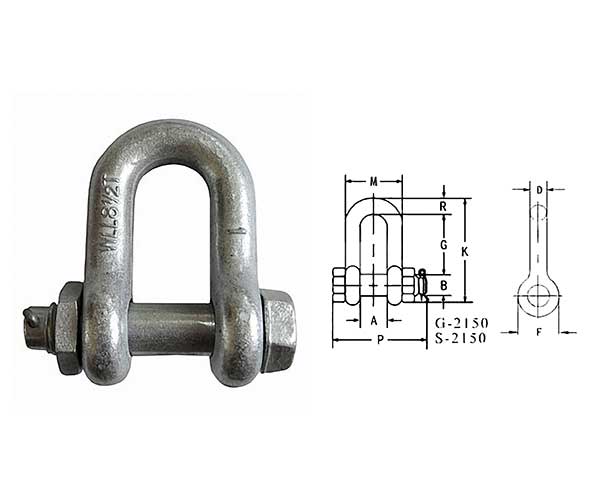

U.S. Bolt Type Safety Chain D Shankles
Product code Weight Each (kg) Nominal Size (in.) WLL(t) Dimensions(mm)
2150 A B C D E F G H L M P
JTR-SE1401 - 3/16 1/3 9.65 6.35 22.4 4.85 15.2 14.2 - 37.3 24.9 - 32.77
JTR-SE1402 0.06 1/4 1/2 11.9 7.85 28.7 6.35 19.8 15.5 19.05 46.7 32.5 15.49 39.62
JTR-SE1403 0.1 5/16 3/4 13.5 9.65 31 7.85 21.3 19.1 25.4 53 37.3 19.05 46.23
JTR-SE1404 0.15 3/8 1 16.8 11.2 36.6 9.65 26.2 23.1 30.99 63 45.2 23.11 55.12
JTR-SE1405 0.22 7/16 11/2 19.1 12.7 42.9 11.2 29.5 26.9 36.09 74 51.5 41.15 63.75
JTR-SE1406 0.34 1/2 2 20.6 16 47.8 12.7 33.3 30.2 41.04 83.5 58.5 45.97 71.12
JTR-SE1407 0.67 5/8 31/4 26.9 19.1 60.5 16 42.9 38.1 50.8 106 74.5 58.67 89.66
JTR-SE1408 1.14 3/4 43/4 31.8 22.4 71.5 19.1 51 46 60.45 126 89 69.85 103.38
JTR-SE1409 1.74 7/8 61/2 36.6 25.4 84 22.4 58 53 71.37 148 102 81.03 119.63
JTR-SE1410 2.52 1 81/2 42.9 28.7 95.5 25.4 68.5 60.5 81.03 167 119 93.73 134.87
JTR-SE1411 3.45 1-1/8 91/2 46 31.8 108 28.7 74 68.5 90.93 190 131 103.12 149.86
JTR-SE1412 4.9 1-1/4 12 51.5 35.1 119 31.8 82.5 76 100.08 210 146 115.06 165.35
JTR-SE1413 6.24 1-3/8 131/2 57 38.1 133 35.1 92 84 111.25 233 162 127 183.13
JTR-SE1414 8.39 1-1/2 17 60.5 41.4 146 38.1 98.5 92 122.17 254 175 136.05 196.34
JTR-SE1415 14.2 1-3/4 25 73 51 178 44.5 127 106 146.05 313 225 162.05 229.87
JTR-SE1416 21.2 2 35 82.5 57 197 51 146 122 171.45 348 253 184.15 264.41
JTR-SE1417 38.6 2-1/2 55 105 70 267 66.5 184 145 203.2 453 327 238.25 344.42
JTR-SE1418 56 3 85 127 82.5 330 76 200 165 215.9 546 365 279.4 419.1
JTR-SE1419 - 3-1/2 120 133 95.5 372 92 229 203 - 626 419 - 482.6
JTR-SE1420 - 4 150 140 108 368 104 254 229 - 653 468 - -
