JTR-SE09 U.S.Screw Pin Anchor Shackles
| JTR-SE09 | ||||||||||||||

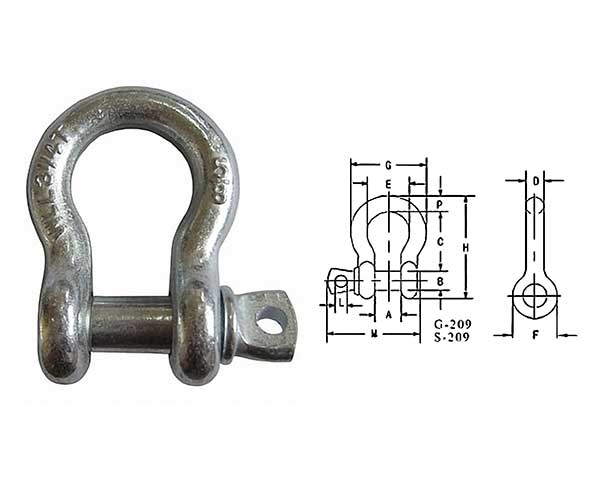

| U.S. Screw Pin Anchor Bow Shackles | ||||||||||||||
| Product code | Weight Each(kg) | Nominal Size(in.) | WLL(t) | Dimensions(mm) | ||||||||||
| 209 | A | B | C | D | E | F | G | H | L | M | P | |||
| JTR-SE0901 | 0.03 | 3/16 | 1/3 | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 4.06 | 28.4 | 4.85 |
| JTR-SE0902 | 0.05 | 1/4 | 1/2 | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 |
| JTR-SE0903 | 0.09 | 5/l6 | 3/4 | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 37.3 | 53 | 5.6 | 42.2 | 7.85 |
| JTR-SE0904 | 0.14 | 3/8 | 1 | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 6.35 | 51.5 | 9.65 |
| JTR-SE0905 | 0.17 | 7/16 | 1-1/2 | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74 | 7.85 | 60.5 | 11.2 |
| JTR-SE0906 | 0.33 | 1/2 | 2 | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 |
| JTR-SE0907 | 0.62 | 5/8 | 3-l/4 | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85 | 17.5 |
| JTR-SE0908 | 1.07 | 3/4 | 4-3/4 | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 12.7 | 1 | 20.6 |
| JTR-SE0909 | 1.64 | 7/8 | 6-1/2 | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 102 | 148 | 12.7 | 114 | 24.6 |
| JTR-SE0910 | 2.28 | 1 | 8-l/2 | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 |
| JTR-SE0911 | 3.36 | 1-1/8 | 9-l/2 | 46 | 31.8 | 108 | 29.5 | 74 | 68.5 | 131 | 190 | 16 | 142 | 31.8 |
| JTR-SE0912 | 4.31 | 1-1/4 | 12 | 51.5 | 35.1 | 119 | 32.8 | 82.5 | 76 | 146 | 210 | 17.5 | 1 56.0 | 35.1 |
| JTR-SE0913 | 6.14 | 1-3/8 | 13-1/2 | 57.O0 | 38.1 | 133 | 36.1 0 | 92 | 84.O | 162 | 233 | 19.1 | 174 | 38.1 |
| JTR-SE0914 | 7.8 | 1-l/2 | 17 | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92 | 175 | 254 | 20.6 | 187 | 41.1 |
| JTR-SE0915 | 12.6 | 1-3/4 | 25 | 73 | 51 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25 40 | 231 | 57 |
| JTR-SE0916 | 20.4 | 2 | 35 | 82.5 | 57 | 197 | 53.OO | 146 | 122 | 253 | 348 | 31 | 263 | 61 |
| JTR-SE0917 | 38.9 | 2-1/2 | 55 | 105 | 70 | 267 | 69 | 184 | 145 | 327 | 453 | 35.1 | 330 | |
