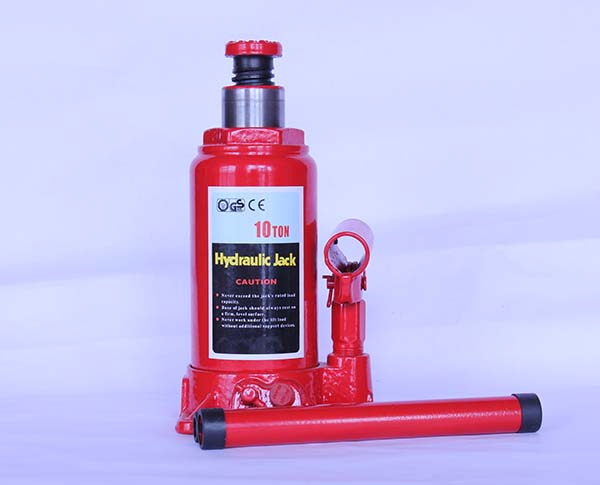

JTHJ-B Hydraulic Bottle Jack（With Safety Valve）
·Adjustable screw saddle provides additional lifting ranges with support and stability.·Wide，rugged base provide stability and strength.
·All critical stress points are reinforced for added durability and dependablity.
·Dual stage rams provides higher lifting range.
·Ideal for auto， truck service，farm，and shop use
| MODEL | Capacity | Min.H. | Lifting.H. | Adjust.H. | N.W. | Q'ty/Ctn | Meas | 20’FCL |
| （Ton） | (mm) | (mm) | (mm) | (kg) | （pcs） | （cm） | （pcs） | |
| T0204 | 2 | 158 | 90 | 60 | 2.4 | 10 | 51×24×19 | 7300 |
| T0204B | 2 | 158 | 90 | 60 | 2.4 | 6 | 34×34×25.5 | 4536 |
| T0404 | 3 or 4 | 195 | 125 | 60 | 3.5 | 8 | 47×26×23 | 5032 |
| T0404B | 3 or 4 | 195 | 125 | 60 | 3.5 | 6 | 55×22×30 | 3860 |
| T0604 | 5 or 6 | 200 | 125 | 80 | 4.5 | 6 | 39×28×23 | 3918 |
| T0604B | 5 or 6 | 200 | 125 | 80 | 4.5 | 4 | 40×27×33 | 3024 |
| T0804 | 8 | 236 | 160 | 80 | 6.7 | 4 | 31×29×27 | 2628 |
| T1004 | 10 | 240 | 160 | 80 | 7.5 | 4 | 31×29×27 | 2348 |
| T1204 | 12 | 245 | 160 | 80 | 8.5 | 2 | 36×17×27 | 2070 |
| T1604 | 15 or 16 | 250 | 160 | 80 | 10.4 | 2 | 36×17×27 | 1692 |
| T2004 | 20 | 250 | 160 | 80 | 11.5 | 2 | 37×18×27 | 1530 |
| T3204 | 30 or 32 | 285 | 180 | - | 18 | 2 | 38×20×31 | 970 |
| T5004 | 50 | 285 | 180 | - | 23 | 1 | 22×21×32 | 765 |
