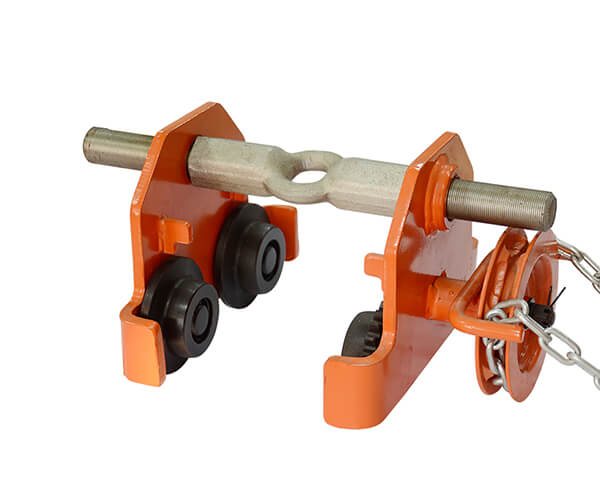

JTGT-D Geared Trolley

It is driven by pulling the hand chain and travels along the lower edge of I-beam.
It applicables to factories,mine , wharf, dock,warehouse,construction site and machine room,etc.
It is used to install the machine equipment and lift goods.

It is suitable for the work environment without power.
Safety and simply maintenance.
Compact structure and small package size.

The distance between its wheels is easy to adjust and can be used in many kinds of I-beam.
It's so high transmission efficiency that do need less output.
It can be drived in a small turning diameter.
The hinge linkes the left and right side plate to guarantee equal force.

Don't load exceeding the rated capacity of the hand trolley.
To avoid accidents working or passing under a load is strictly forbidden.
Regularly fill the grease on the bearings and rail surfaces. Meantime check whether there is any loose on the firmware.
If there are any anomalous situations, stop using the product immediately and Check the cause to remove it .
Regularly maintenance is needed.

CSL-Y4型手拉单轨行车性能参数表

规格 Model 0.5t 1t 2t 3t 5t
额定载重量Rated capacity t 0.5 1 2 3 5
试验载荷 Test load KN 0.25 12.5 25 37.5 62.5
标准运行高度 Running height m 3
满载时的手拉力 Chain pull to lift full load N 45 55 100 75 120
能通过的最小弯道半径 Min.radus of curve m 0.9 1 1.2 1.3 1.4

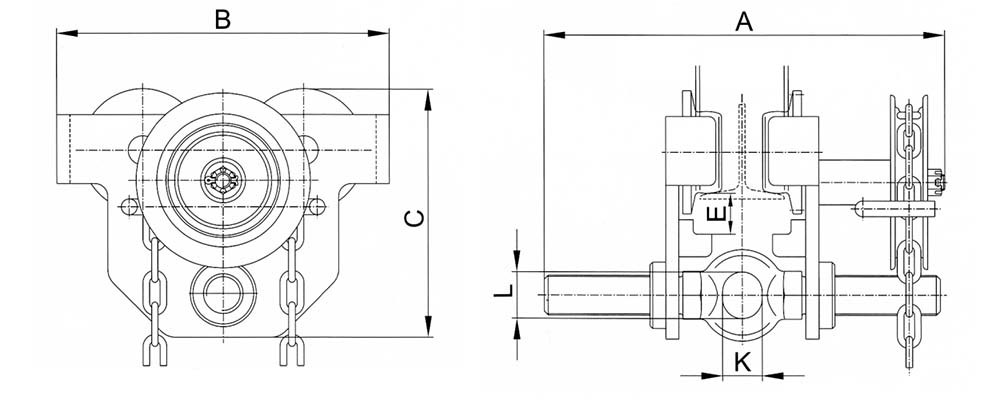

主要尺寸
mm
Dimensions
A 挂梁Pyion 292 300 314 350 359
加长挂梁
Lengthen pyion
377 385 395 409 414
B 225 252 300 360 392
C 173 188 226 289 313
E 33 31 32 46 47
F ≈3
K 25 30 40 48 60
L 30 35 47 58 70
适用轨宽 mm
Adlustable beam width
M 挂梁Pyion 50-220 58-220 66-220 74-220 90-220
加长挂梁
Lengthen pyion
160-305 160-305 160-305 160-305 160-305
运行高度每增减1米相应增减重量
Extra weight per meter of extra lift
kg ≈1
净重
Netweight
kg 挂梁Pyion 11.4 14.7 21.8 36.7 48.5
加长挂梁
Lengthen pyion
11.8 15.2 22.6 37.9 50
