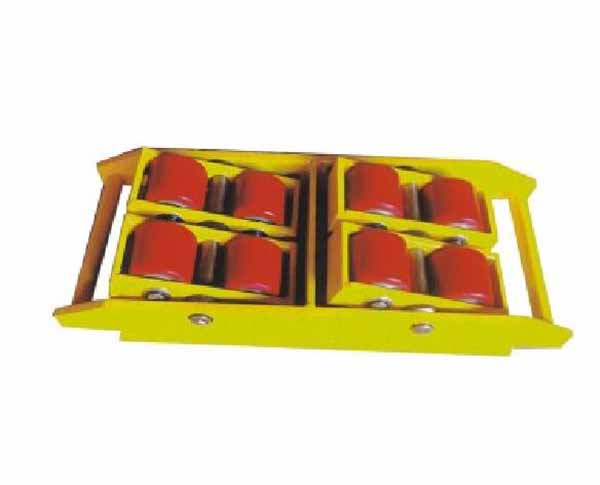

JTCT-E Series Transport Trolley
Transport trolleys can be used wherever heavy objects have to be moved.The load can be lifted using either the roller crowbar or jack,allowing the skates to be easily positioned.The large diameter sealed nylon roller ensure ease of movement and spread the load,protecting high quality floors from damage caused by high point loads and oil/grease contamination.The skates are maintenances free and are fitted with handles for ease of carrying and positioning.
| Model | CRF-6 | CRF-8 | CRF-12 |
| Maximum load (T) | 6 | 8 | 12 |
| Normal load (T) | 4 | 6 | 8 |
| L×W×H (mm) | 400×240×120 | 400×380×120 | 650×270×120 |
| Net Weight (kg) | 21 | 32 | 52 |
| Obstacle crossing ability (mm) | 20 | 20 | 20 |
| The material of wheel | PU wheel | ||
