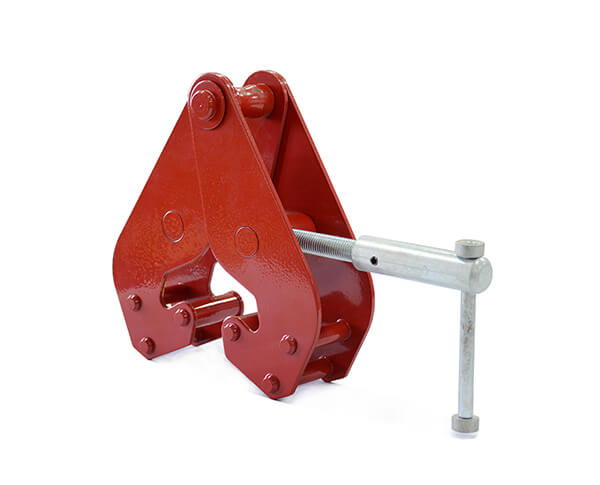

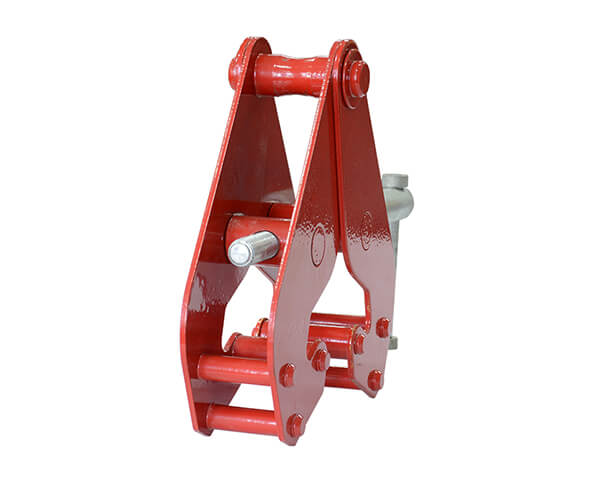

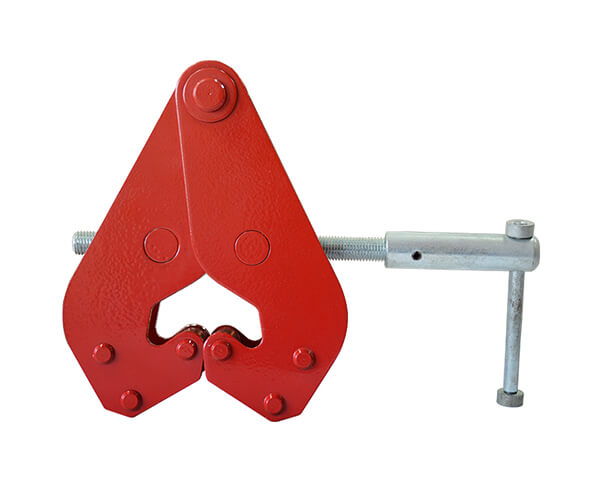

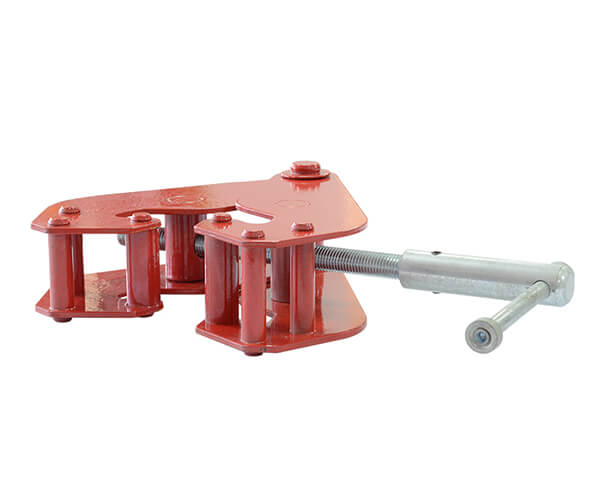

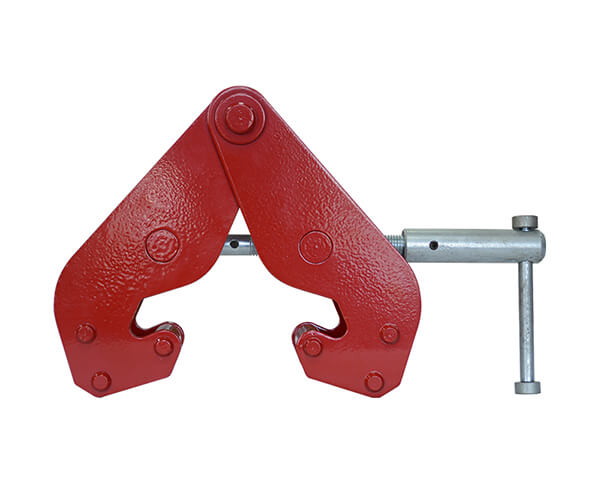

JTBC-C Beam Clamp
Unversal Beam Clamp
·Conforms to ANSI/ASME safety standard
·Can be easily adjusted with threaded handle
·Clamp jaw is designed to reduce flange stress by distributing load away from I-Beam flange edge
·Fits a wide range of flange width and beams
·Suspension bar provides lower headroom
OPTIONAL EXTRA
·Can be supplied with shackle
·Special design with flatened，reinforced jaws
*1-ton to 10-ton capacities.
* For construction,commercial and industrial vertical or horizontal rigging operations.
* Mount hoists or lift beams with portable lightweight clamp.
* Adjusts with ease to fit a broad range of wide-flange H or standard I beams.
* Clamp jaw designed to distribute the load away from beam flange edge.
* Low headroom with built-in suspension rod.
* Robust all-steel construction with safety operation. Compact size with light,easy to install with minimum headroom,super-quick adjustment to any girder width in range.
JTBC-C Beam Clamp

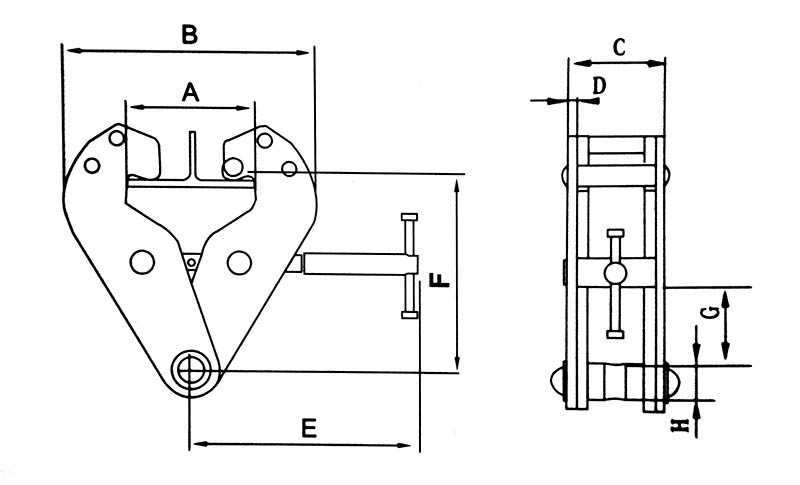

| Adjustable Beam Width(mm) | Dimensions(mm) | Net Weight (kg) | |||||||||
| A | B | C | D | E | F | G | H | ||||
| Max. | Min. | Max. | Min. | Max. | |||||||
| 75-230 | 260 | 200 | 360 | 64 | 5 | 215 | 102 | 155 | 25 | 18.5 | 4.5 |
| 75-230 | 260 | 200 | 360 | 74 | 6 | 215 | 102 | 155 | 25 | 22 | 5 |
| 80-320 | 354 | 235 | 490 | 103 | 8 | 278 | 140 | 225 | 45 | 24 | 9.5 |
| 80-320 | 354 | 235 | 490 | 110 | 10 | 278 | 140 | 225 | 45 | 28 | 11 |
| 90-320 | 365 | 320 | 505 | 120 | 12 | 280 | 170 | 235 | 50 | 40 | 16 |
