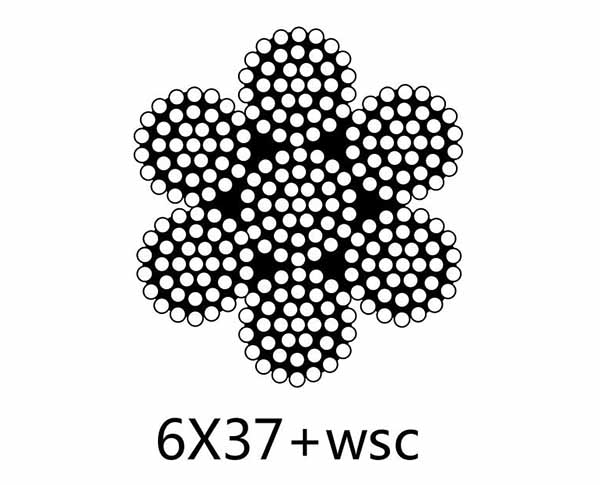

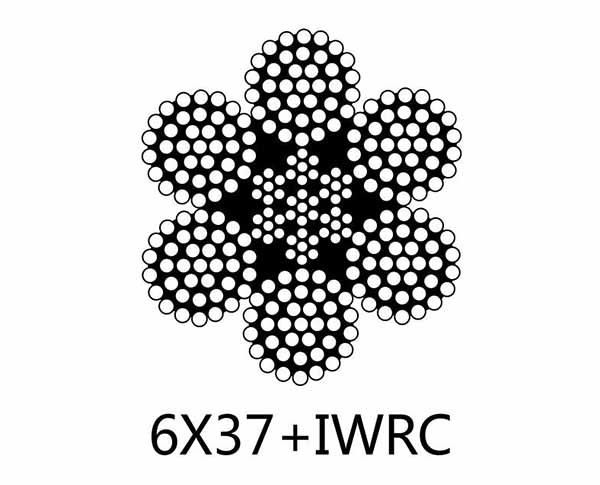

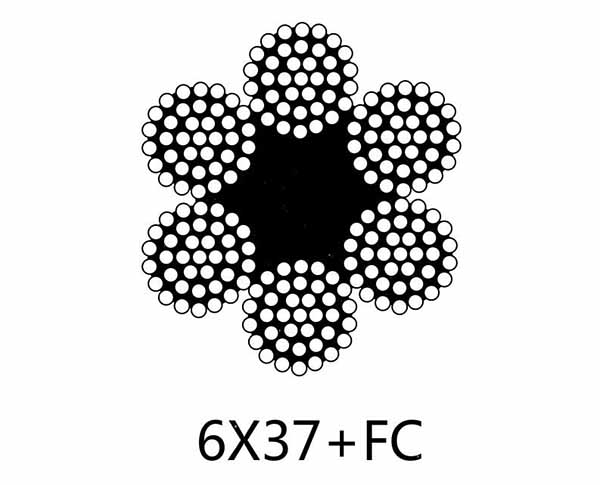

DIN3066 6×37+FC,6×37+WSC or IWRC
| Specification：DIN3066 6×37+FC，6×37+WSC or IWRC | ||||||||
| Usage：Hoist，General Industry，Crane | ||||||||
|
Nominal Diameter |
Approx Weight |
Nominal Tensile Strength | ||||||
| Minimum Breaking strength(KN) | ||||||||
| kg/100m | 1570N/mm² | 1770N/mm² | 1960N/mm² | |||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC | FC | IWRC |
| 5 | 8.56 | 9.53 | - | - | 13.1 | 14.1 | 14.5 | 15.6 |
| 6 | 12.5 | 13.7 | - | - | 18.8 | 20.3 | 20.8 | 22.5 |
| 7 | 17 | 18.6 | - | - | 25.6 | 27.6 | 28.3 | 30.6 |
| 8 | 22.1 | 24.4 | 29.6 | 32 | 33.4 | 36.1 | 37 | 40 |
| 9 | 28 | 30.8 | 37.5 | 40.5 | 42.3 | 45.7 | 44.6 | 50.6 |
| 10 | 34.6 | 38.1 | 46.3 | 50 | 52.2 | 56.4 | 57.8 | 62.5 |
| 11 | 41.9 | 46.1 | 56 | 60.5 | 63.1 | 68.2 | 69.9 | 75.5 |
| 12 | 49.8 | 54.8 | 66.6 | 72 | 75.1 | 81.2 | 83.2 | 89.9 |
| 13 | 58.5 | 64.3 | 78.2 | 84.5 | 88.2 | 95.2 | 97.7 | 105.4 |
| 14 | 67.8 | 74.6 | 90.7 | 98 | 102 | 110 | 112.9 | 121.8 |
| 16 | 88.6 | 97.4 | 118 | 128 | 134 | 144 | 148.4 | 159.5 |
| 18 | 112 | 123 | 150 | 162 | 169 | 183 | 187.1 | 202.6 |
| 20 | 138 | 152 | 185 | 200 | 209 | 225 | - | - |
| 22 | 167 | 184 | 224 | 242 | 253 | 273 | - | - |
| 24 | 199 | 219 | 267 | 288 | 301 | 325 | - | - |
| 26 | 234 | 257 | 313 | 338 | 353 | 381 | - | - |
| 28 | 271 | 298 | 363 | 392 | 409 | 442 | - | - |
| 30 | 311 | 343 | 416 | 430 | 469 | 508 | - | - |
| 32 | 354 | 390 | 474 | 512 | 534 | 577 | - | - |
| 34 | 400 | 440 | 535 | 578 | 603 | 652 | - | - |
| 36 | 448 | 493 | 600 | 648 | 676 | 730 | - | - |
| 38 | 500 | 550 | 668 | 723 | - | - | - | - |
| 40 | 554 | 609 | 741 | 800 | - | - | - | - |
| 44 | 670 | 737 | 896 | 968 | - | - | - | - |
| 48 | 797 | 878 | 1070 | 1150 | - | - | - | - |
